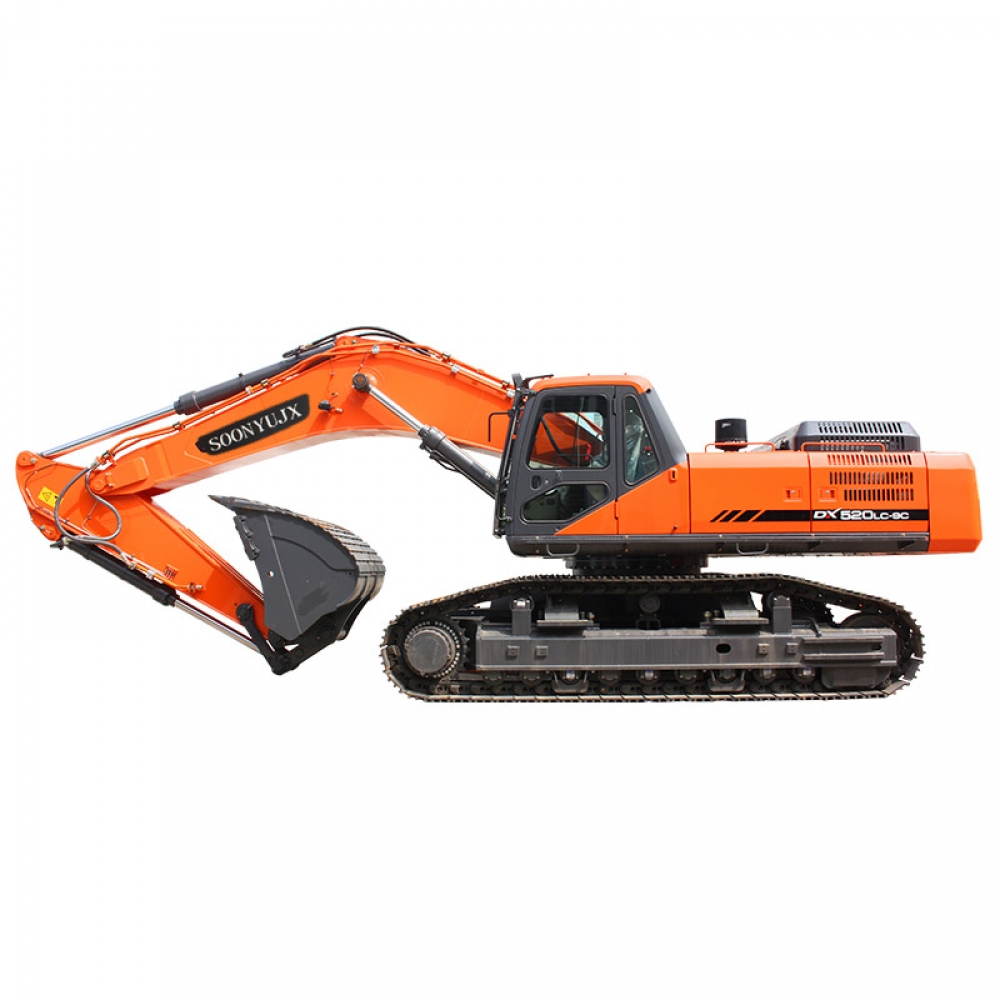

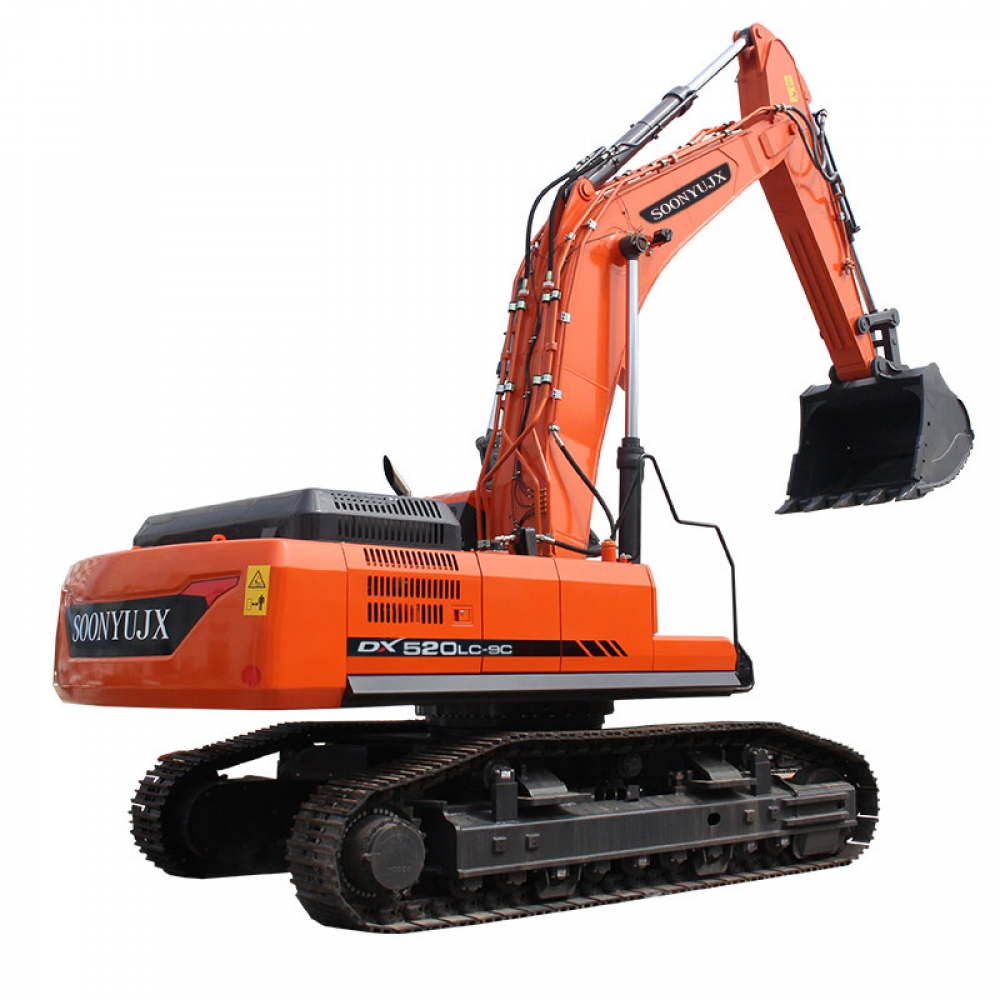

DX520LC-9C
- Rated power:257 kW / 1,800 rpm
- Working weight:50,800 kg
- Bucket capacity:3 m3
- Price:
Technical Parameters
rated power |
257 kW / 1,800 rpm |
Working weight |
50,800 kg |
Bucket capacity |
3 m3 |
engine model |
DC13 |
Walking speed (1 speed / 2 speed) |
3.1 / 5.3 km / hr |
Swivel torque |
16,304 kgf.m |
Bucket digging force |
27.2 / 28.8 Ton |
Stick digging force |
23.8 / 25.2 Ton |
Maximum digging height |
9,705 mm |
Maximum dumping height |
6,750 mm |
Maximum digging depth |
6,765 mm |
Maximum vertical digging depth |
1,155 mm |
Maximum digging radius |
10,765 mm |
full length |
11,530 mm |
Full width |
3,900 mm |
Full height (to the top of the boom) |
4,125 mm |
Full height (to the top of the cab) |
3,350 mm |
