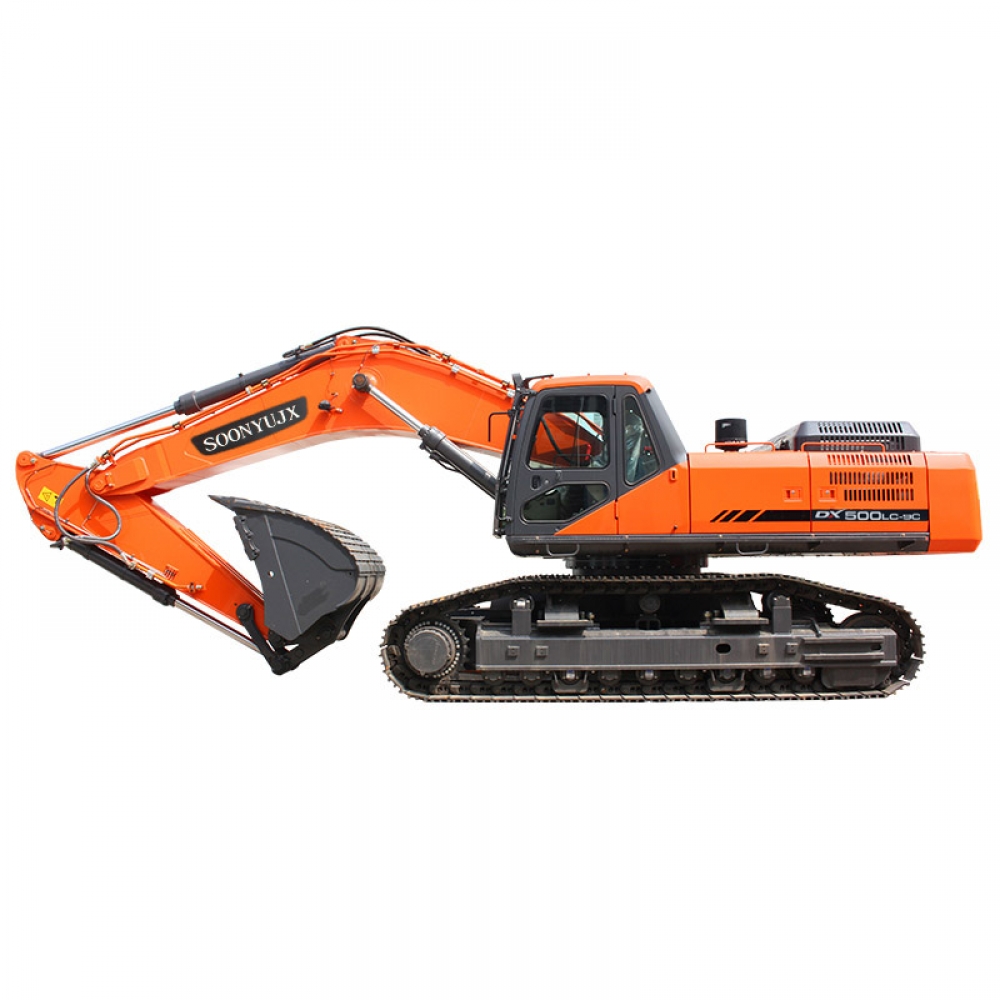

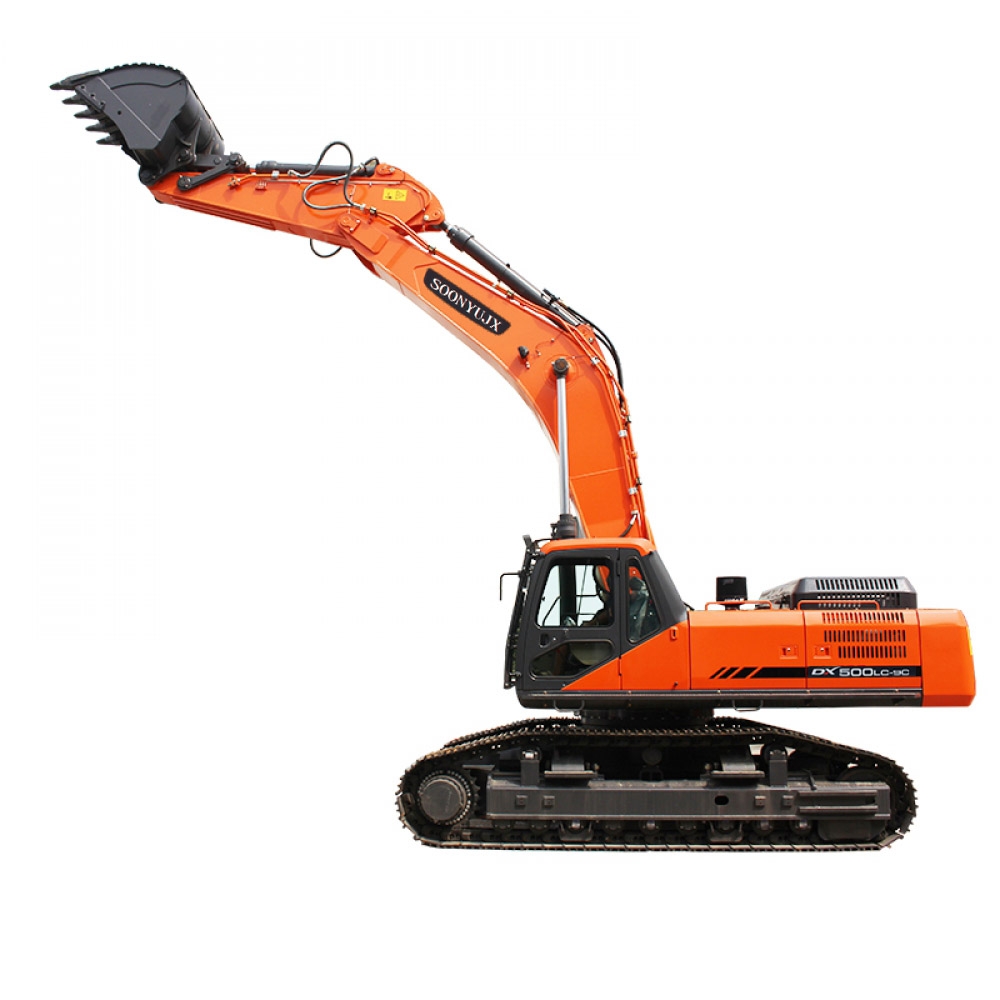

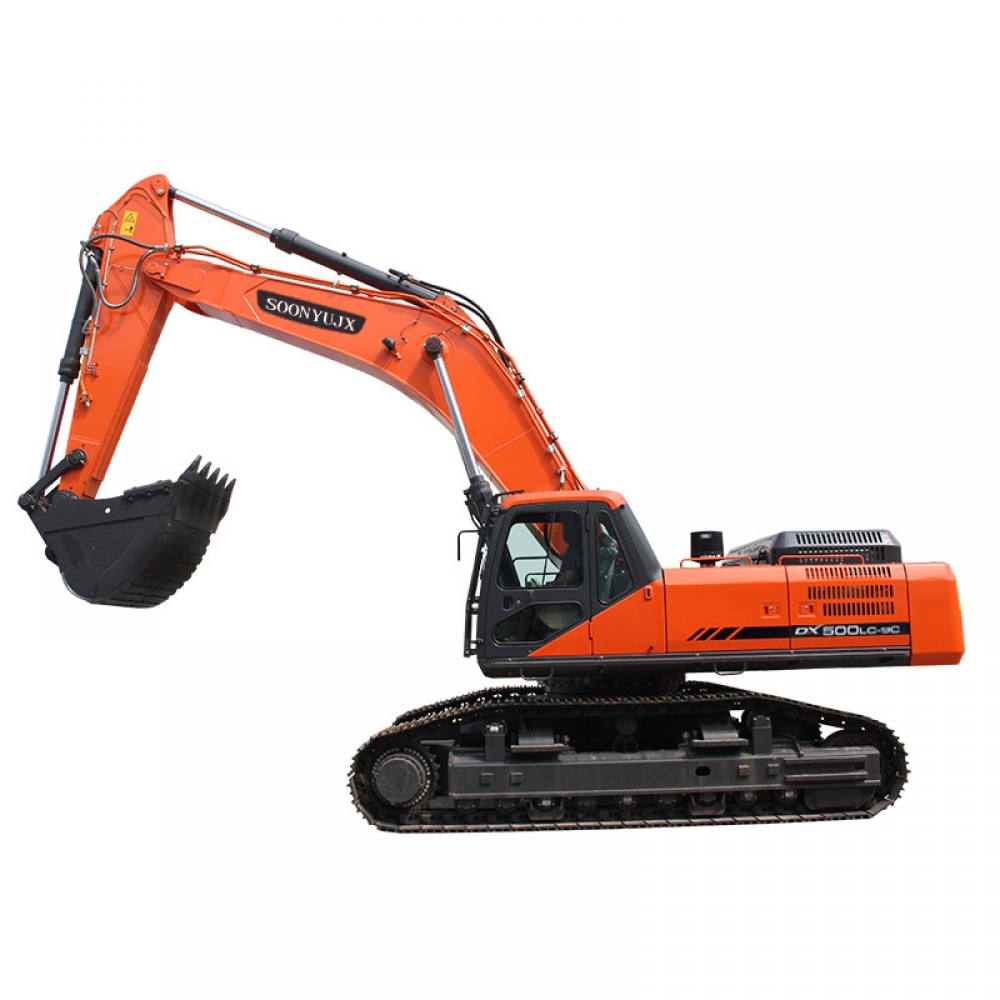

DX500LC-9C
- Rated power:257 kW / 1,800 rpm
- Working weight:49,500 kg
- Bucket capacity:2.14 ~ 2.4 m3
- Price:
Technical Parameters
rated power |
257 kW / 1,800 rpm |
Working weight |
49,500 kg |
Bucket capacity |
2.14 ~ 2.4 m3 |
engine model |
DC13 |
Walking speed (1 speed / 2 speed) |
3.1 / 5.3 km / hr |
Swivel torque |
16,304 kgf.m |
Bucket digging force |
29.2 / 31.0 Ton |
Stick digging force |
21.7 / 23.0 Ton |
Maximum digging height |
10,787 mm |
Maximum dumping height |
7,915 mm |
Maximum digging depth |
7,740 mm |
Maximum vertical digging depth |
4,370 mm |
Maximum digging radius |
12,055 mm |
full length |
12,230 mm |
Full width |
3,350 mm |
Full height (to the top of the boom) |
3,580 mm |
Full height (to the top of the cab) |
3,350 mm |
