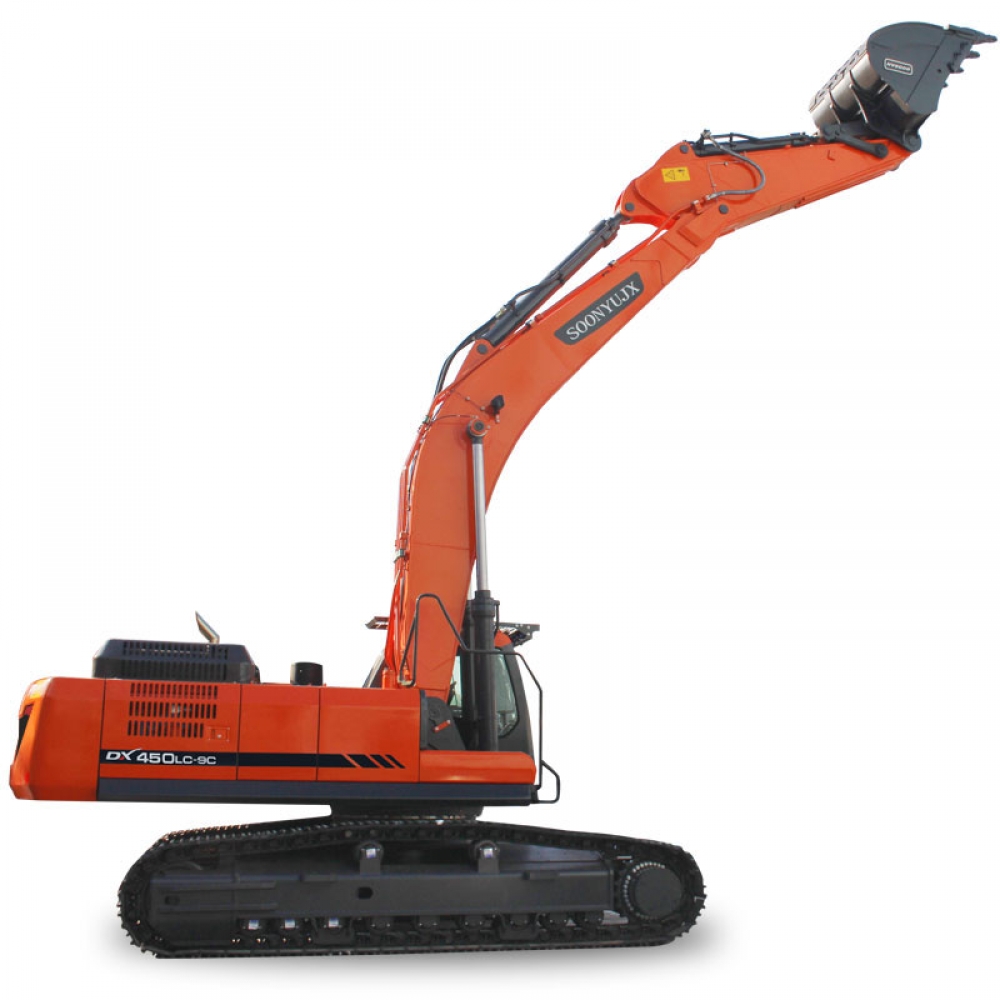

DX450LC-9C
- Rated power:245 kW / 1,800 rpm
- Working weight:42,900 ~ 43,000 kg
- Bucket capacity:2.2 ~ 2.4 m3
- Price:
Technical Parameters
rated power |
245 kW / 1,800 rpm |
Working weight |
42,900 ~ 43,000 kg |
Bucket capacity |
2.2 ~ 2.4 m3 |
engine model |
DC13 |
Walking speed (1 speed / 2 speed) |
5.1 / 3.2 km / hr |
Swivel torque |
13,250 kgf.m |
Bucket digging force |
25.4 / 27 Ton |
Stick digging force |
23 / 24.4 Ton |
Maximum digging height |
10,475 mm |
Maximum dumping height |
7,345 mm |
Maximum digging depth |
7,120 mm |
Maximum vertical digging depth |
3,525 mm |
Maximum digging radius |
10,915 mm |
full length |
11,870 mm |
Full width |
3,350 mm |
Full height (to the top of the boom) |
3,590 mm |
Full height (to the top of the cab) |
3,154 mm |
