Working weight

36,000 kg

Bucket capacity

1.71 m3

engine model

DC09

Walking speed (1 speed / 2 speed)

4.93 / 3.01 km / hr

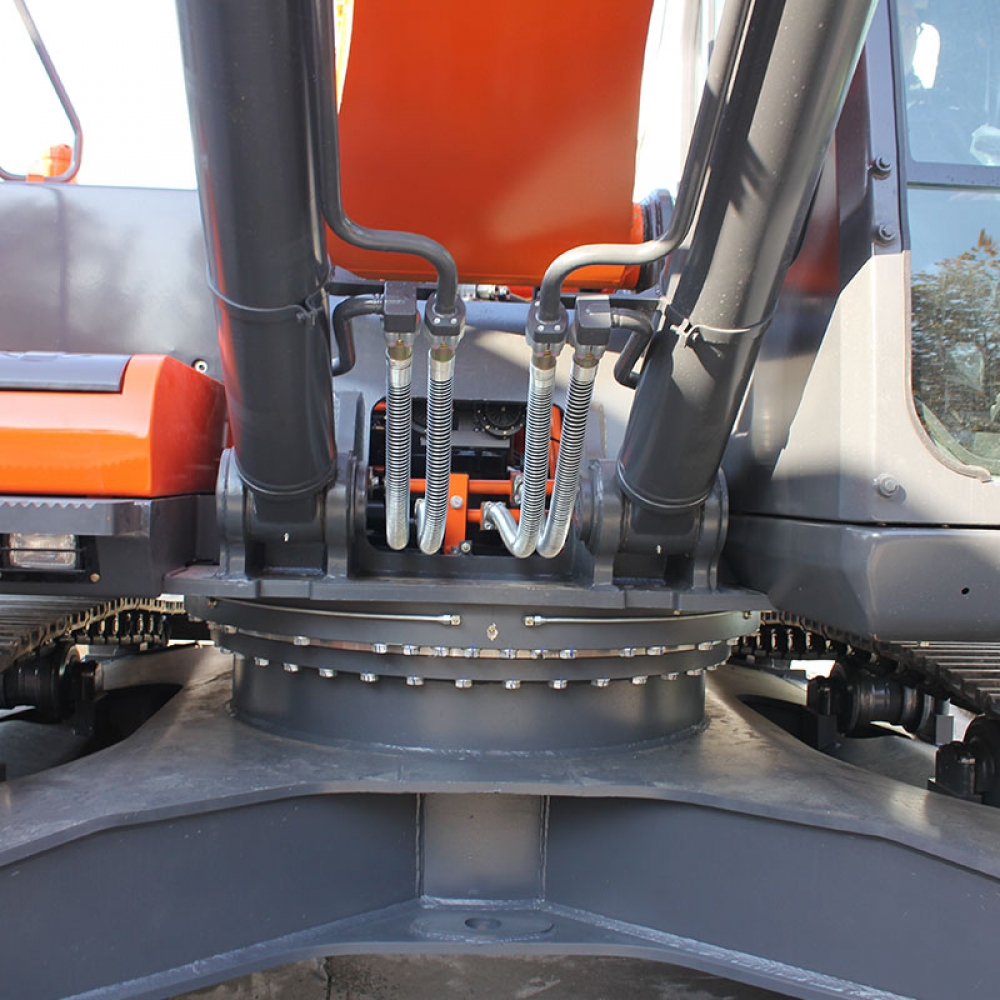

Swivel torque

12,020 kgf.m

Bucket digging force

24.6 Ton

Stick digging force

18.1 Ton

Maximum digging height

10,120 mm

Maximum dumping height

7,251 mm

Maximum digging depth

7,461 mm

Maximum vertical digging depth

3,783 mm

Maximum digging radius

11,045 mm

full length

11,319 mm

Full width

3,280 mm

Full height (to the top of the boom)

3,570 mm

Full height (to the top of the cab)

3,070 mm
