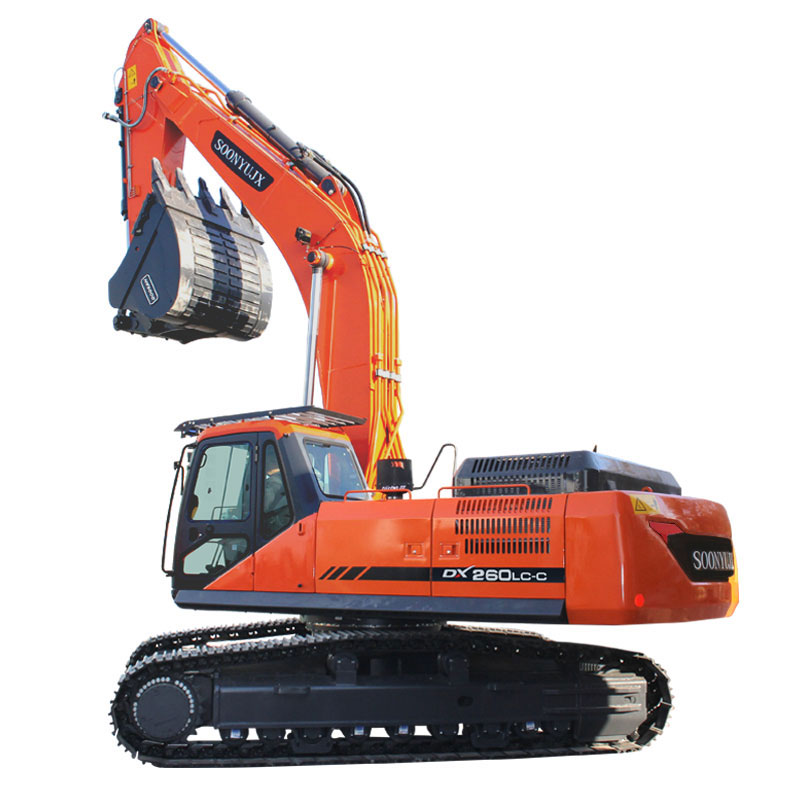

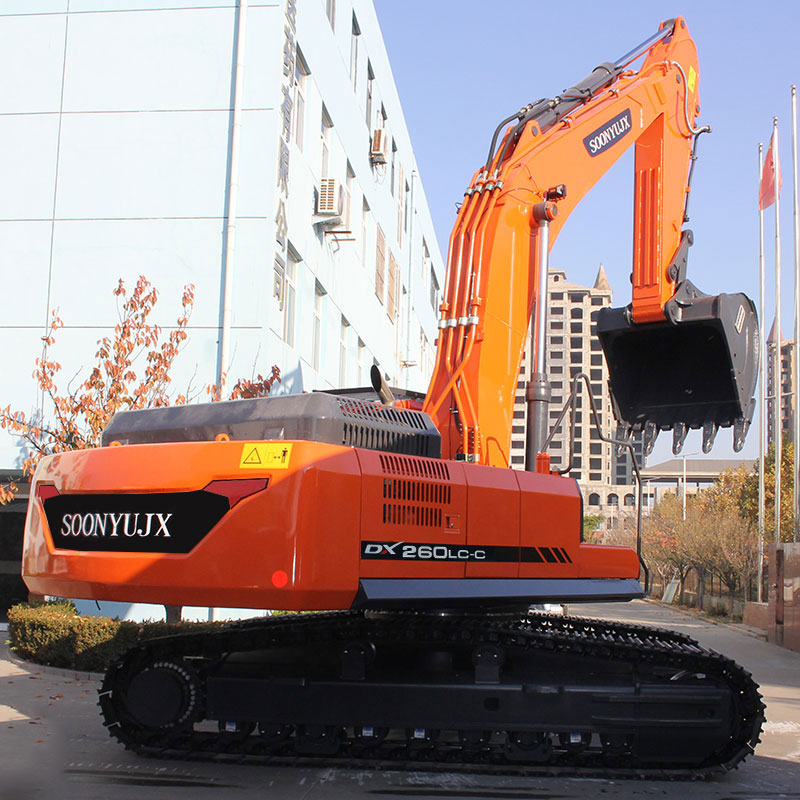

DX260LC-9C
- Rated power:140 kW / 2,000 rpm
- Working weight:25,060 kg
- Bucket capacity:1.4 m3
- Price:
Technical Parameters
rated power
|
140 kW / 2,000 rpm
|
Working weight
|
25,060 kg
|
Bucket capacity
|
1.4 m3
|
engine model
|
DL06A-C3
|
Walking speed (1 speed / 2 speed)
|
5.8 / 3.4 km / hr
|
Swivel torque
|
8,140 kgf.m
|
Bucket digging force
|
17.9 Ton
|
Stick digging force
|
12.4 Ton
|
Maximum digging height
|
9,705 mm
|
Maximum dumping height
|
7,024 mm
|
Maximum digging depth
|
6,180 mm
|
Maximum vertical digging depth
|
4,742 mm
|
Maximum digging radius
|
10,175 mm
|
full length
|
10,055 mm
|
Full width
|
3,200 mm
|
Full height (to the top of the boom)
|
2,960 mm
|
Full height (to the top of the cab)
|
2,970 mm
|
